Box-type sandblasting machine
Equipment introduction:
By utilizing the impact and cutting effects of abrasives on the surface of the workpiece, a certain degree of cleanliness and different levels of roughness can be achieved on the surface of the workpiece, improving its mechanical properties. Consequently, this enhances the fatigue resistance of the workpiece, increases the adhesion between it and the coating, prolongs the durability of the coating film, and also facilitates the leveling and decoration of the coating. It removes impurities, discoloration, and oxide layers from the surface, while roughening the medium surface, eliminating residual stress in the workpiece, and improving the surface hardness of the substrate.
Scope of application:

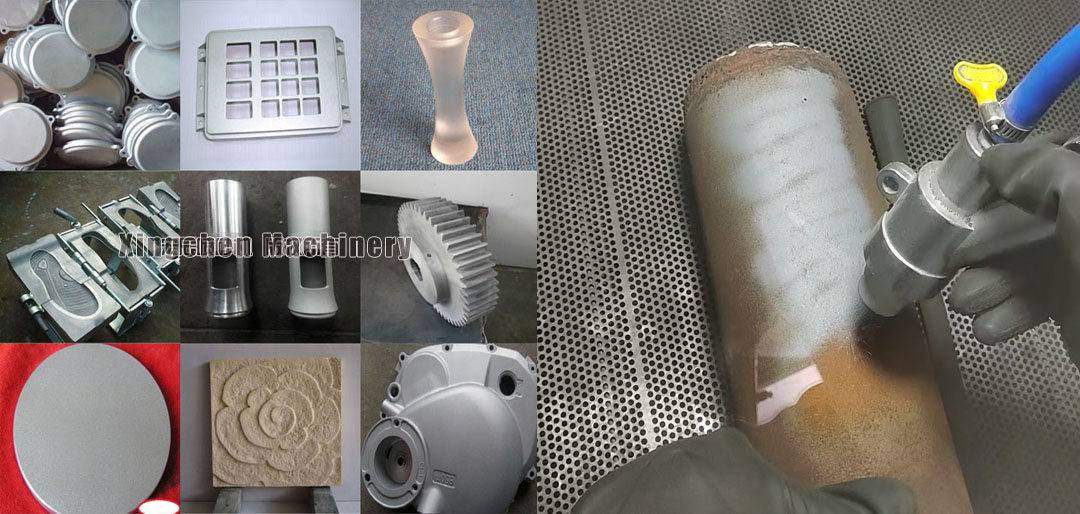

1. Surface finishing, scratch removal, roughness improvement, and surface cleaning for various plastics, crafts, and metal decorations;
2. Removal of oxide scale, rust removal, and parts refurbishment for castings, stamped parts, and specially treated parts;
|

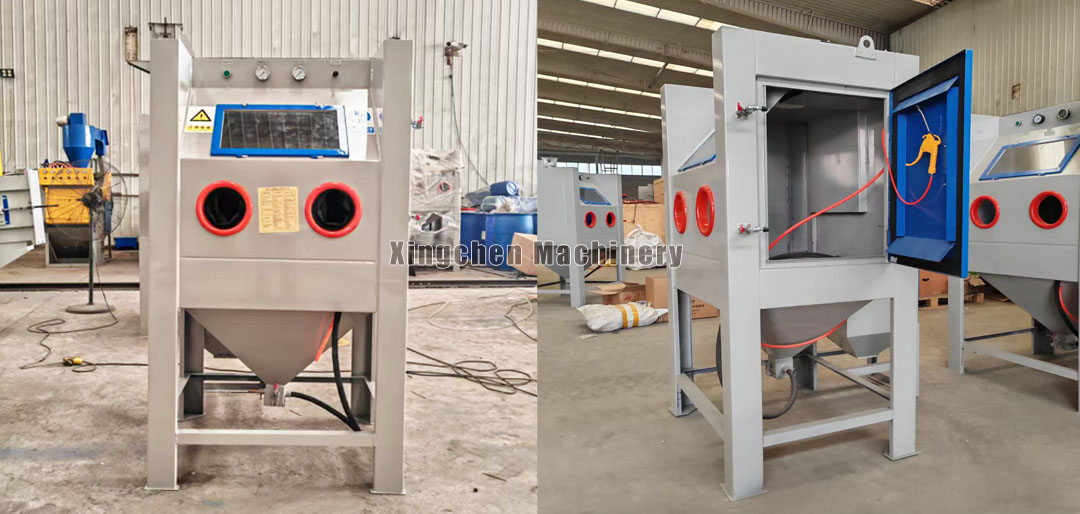

Manual box-type general pressure sandblasting machine
|
|
model
|
XC-6050
|
XC-9080
|
XC-1010
|
XC-1212
|
XC-1515
|
|
Overall dimensions
|
600×900×1500
|
900×1100×1650
|
1000×1400×1700
|
1200×1600×1750
|
1500×1900×1850
|
|
Working compartment dimensions
|
600×500×500
|
900×800×700
|
1000×1000×700
|
1200×1200×700
|
1500×1500×800
|
|
dust collector
|
Bag type×5
|
Bag type×5
|
Bag type×5
|
Bag type×5
|
Bag type×5
|
|
Dust removal fan
|
0.55KW
|
0.5KW
|
0.55KW
|
0.75KW
|
0.75KW
|
|
Air supply requirements
|
≥1m³/min
|
≥1m³/min
|
≥1m³/min
|
≥1m³/min
|
≥1m³/min
|
|
Scope of Application
|
Surface cleaning or refurbishment for medicine, food, machinery, hardware, etc
|






|
