Working Principle

This machine adopts a pressurized sandblasting mechanism, which utilizes the high-speed flow of compressed air in the sandblasting tank to form a high-pressure effect. The sand material in the sandblasting tank is sprayed out through the sandblasting pipe, and then ejected at high speed onto the surface of the workpiece along with the compressed airflow from the spray gun, achieving the purpose of sandblasting processing.

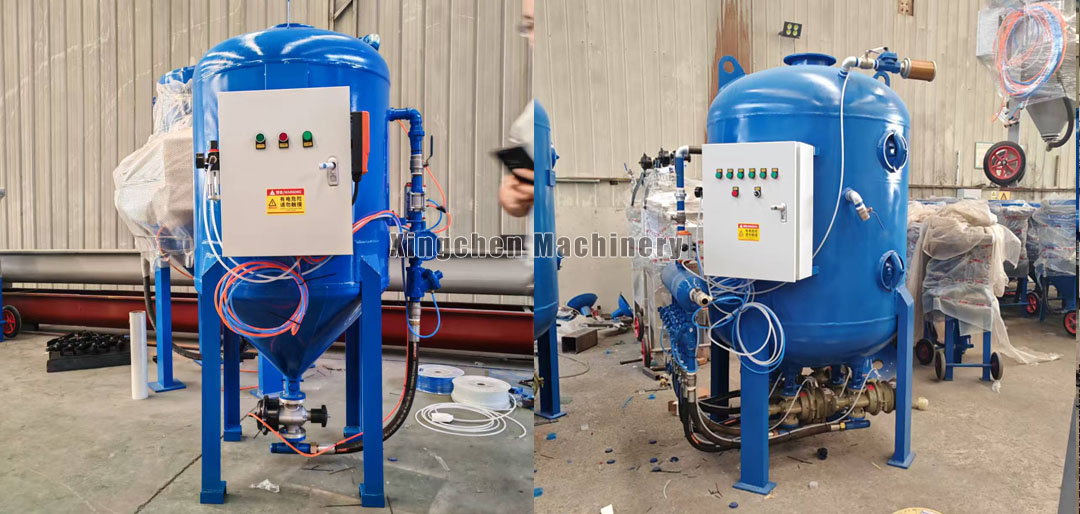

Product Features

①. The sandblasting tank body is made of 8mm cold-rolled steel plates welded together.
②. The sandblasting machine is equipped with 1-3 spray guns made of boron carbide composite material.
③. Install a Clément valve body beneath the sandblasting tank to precisely adjust the sand volume.
④. This machine is equipped with a maintenance valve to prevent abrasive material from falling, making it easy to perform maintenance on the valve body.
⑤. Adopting an electronically controlled valve body, with simple operation

Main technical parameters

①. Overall dimensions: ￠900×2400 (height) mm
②. Self-weight: 400KG
③. Sand loading capacity: 1.0m³
④. Working pressure: 0.6-0.8 MPa
⑤. Air consumption per single gun: 3m³/min
⑥. Single-gun cleaning speed: 15-20 m2/h
⑦. Recommended air compressor: Displacement: 6m³/min
Air pressure: 0.8Mpa Motor power: 37Kw
⑧. Recommended abrasive types: emery, brown corundum, steel grit, steel shot, steel wire cut, etc.

Relevant configuration

1. Electric control box
The remote control valve body can be opened and closed remotely, with high sensitivity;
2. Service valve
By preventing the need to remove the abrasive from the tank each time the valve body is replaced, the abrasive from falling, we can improve work efficiency and easily carry out valve body maintenance.
3. Claremont valve body
Using the Claremont valve body, it is suitable for various abrasives, with precise sand volume adjustment and less sand blockage;
